5 ft tall × 4 ft spread × 6 ft long
1 – 1.5 hours

A-Frame Cucumber Trellis

Two hinged frames leaned together and covered with mesh create a sturdy A-frame that cucumbers climb up both sides, keeping fruit straight and clean.

Estimated time

1 – 1.5 hours

Lifespan

5–8 years

Soil needed

None — covers two planting rows

Weight empty

15–25 lbs

Weight full

Adds 50–100 lbs of vine and fruit load

Best for

Cucumbers, small melons, pole beans, and peas

Placement

Orient the long axis north-south so both sides get sun. Plant cucumbers at the base of each side.

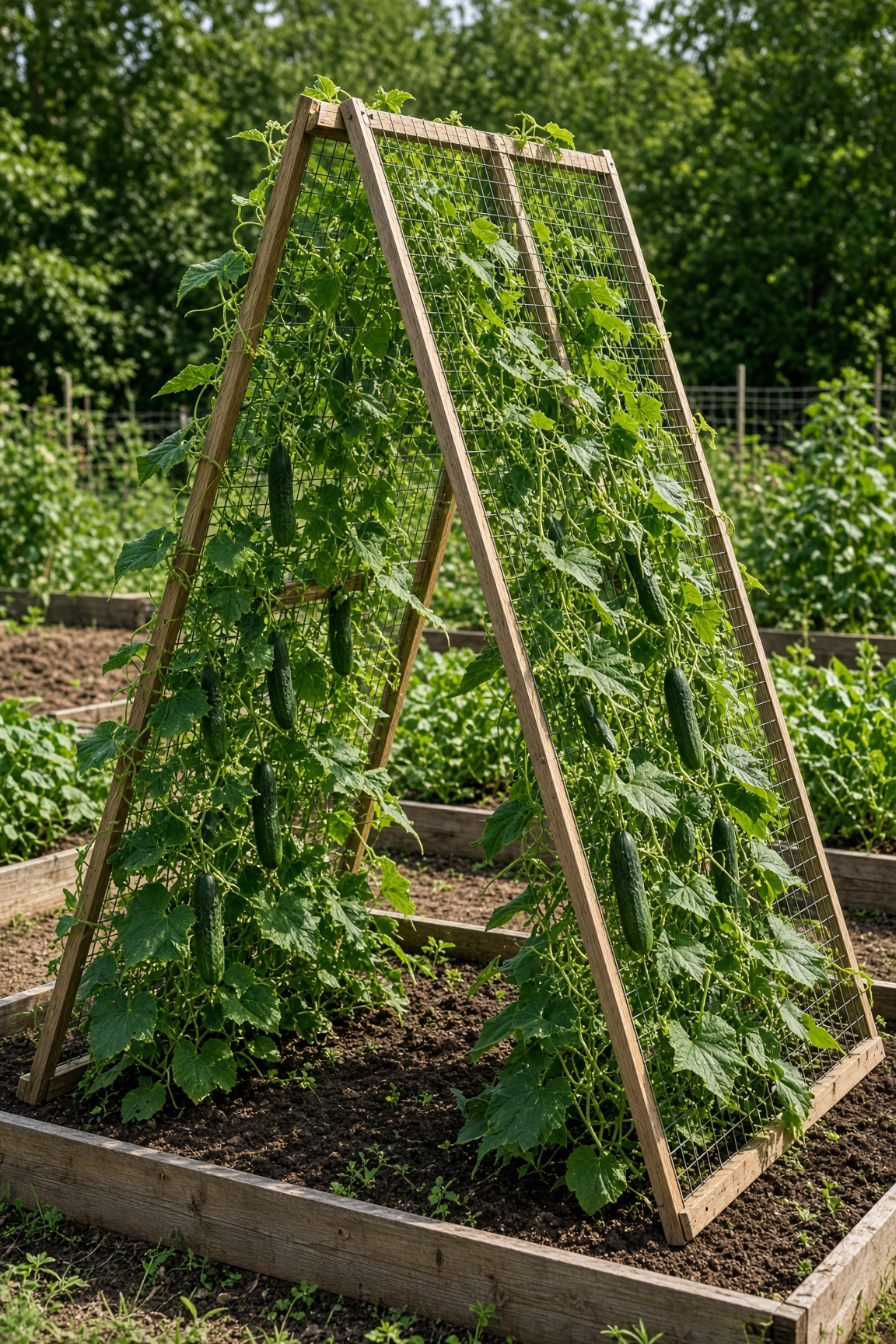

A wooden A-frame cucumber trellis covered in climbing vines and cucumbers in a raised bed
The A-frame keeps cucumbers off the soil and easy to pick

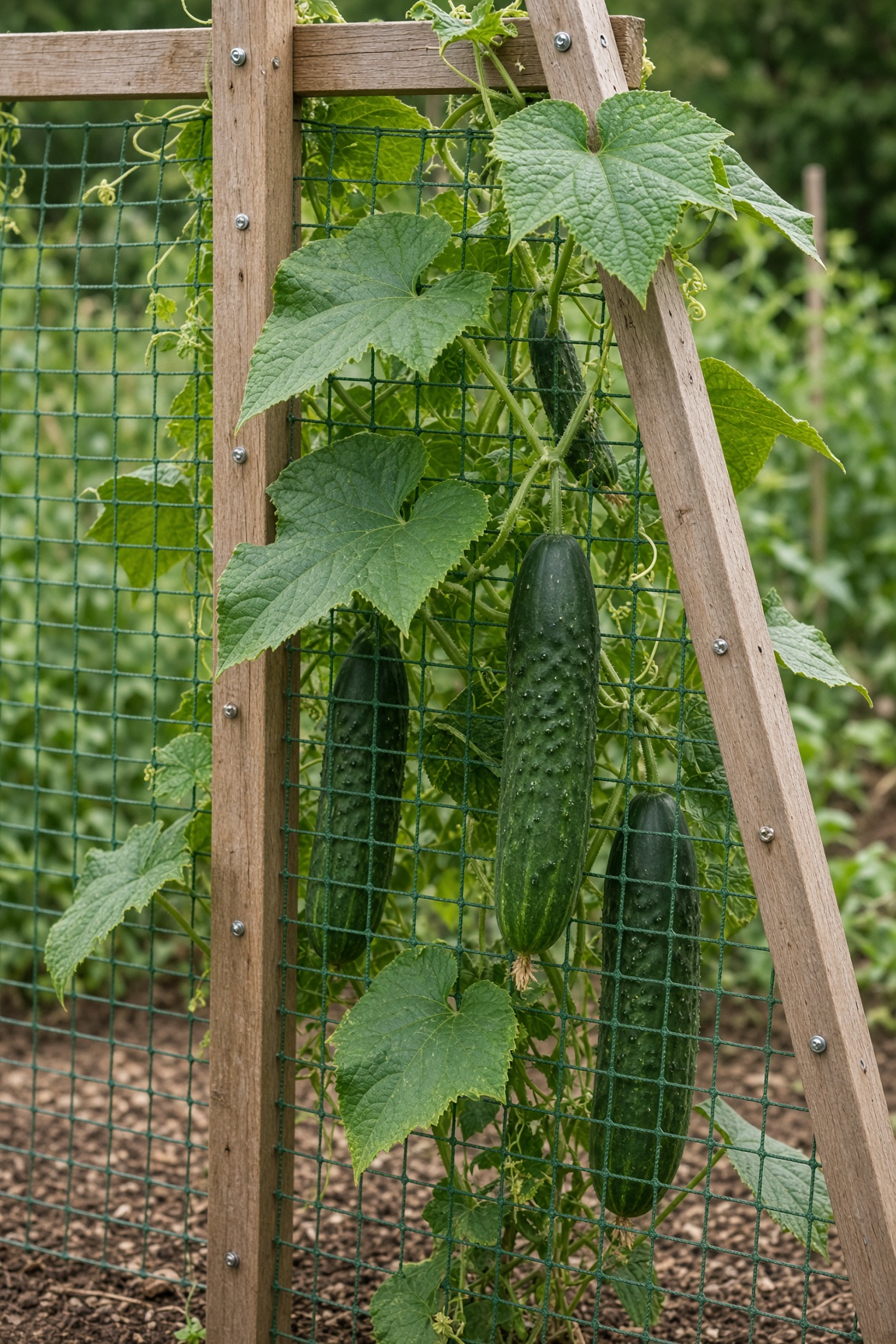

Close-up of cucumbers hanging on mesh attached to a wooden A-frame trellis
Fruit hangs straight and clean where air can reach it

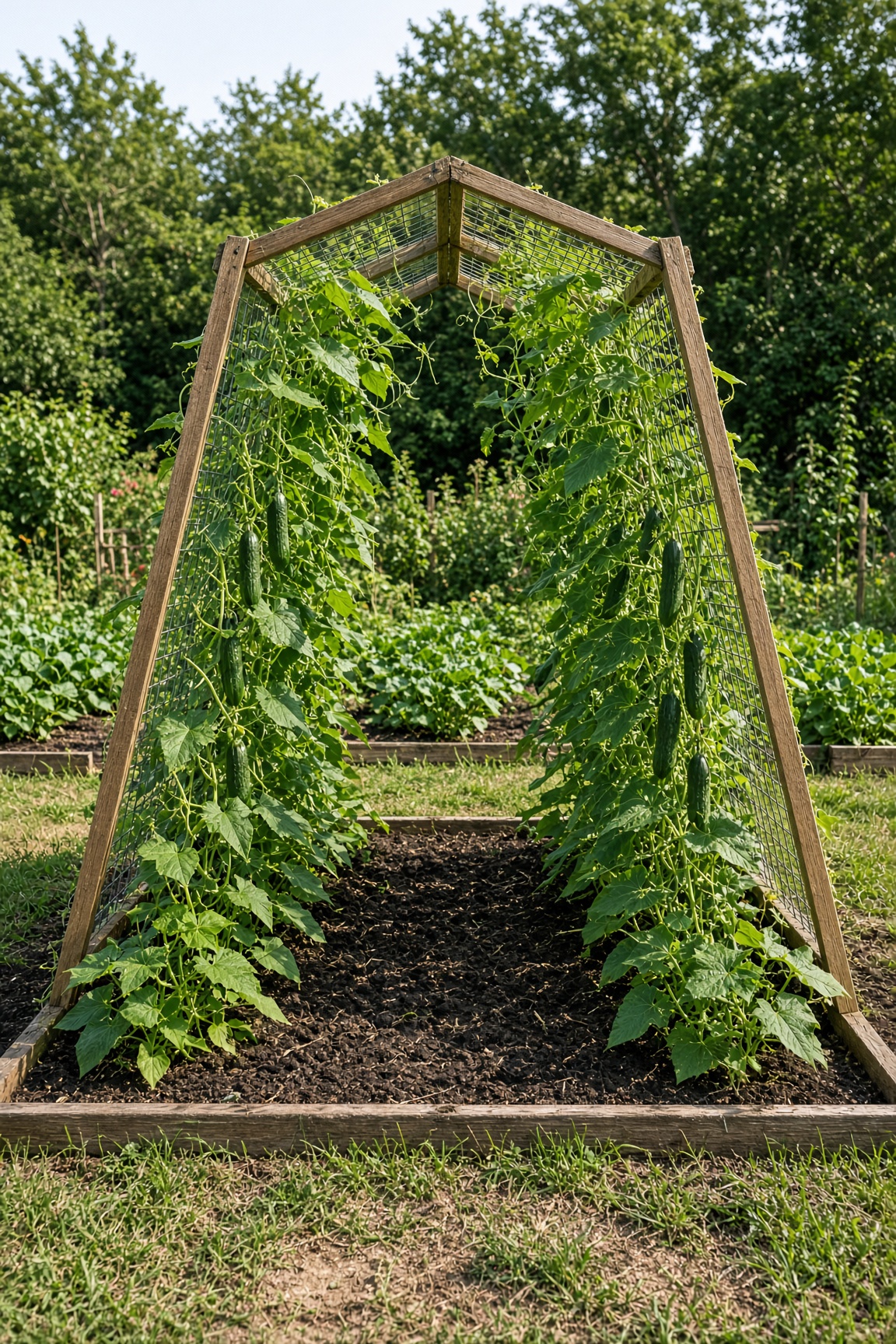

A wide view of an A-frame cucumber trellis spanning a raised bed with plants on both sides
North-south orientation gives both rows even sun

Boards to Buy

Boards to BuyQuantityWhat You Use Them For
2×2 or 2×3 lumber, 8 ft4Frame legs
2×2 lumber, 6 ft4Top and bottom rails on each panel
Chicken wire or garden mesh, 4 ft × 12 ft1Climbing surface
3-inch exterior screws1 lb boxFrame assembly
Heavy-duty hinge or bolt1Joins the two frames at the top
Landscape staples or stakes4–8Anchor the feet
  • ·Optional: a 4 ft spreader bar at the base to keep the legs from walking outward

Steps

  1. 1Cut four 2×2 legs to 6 ft each.
  2. 2Build two rectangular panels, each 6 ft long and 5 ft tall. The 4 ft measurement is the spread between the two rows when the A is opened.
  3. 3Attach 2×3 or 2×2 top and bottom rails to each panel so the mesh has a frame on all four sides.
  4. 4Attach the mesh to one side of each panel using staples or screws with washers. Use 2×3 inch or smaller openings; chicken wire works, but cattle panel is a different build.
  5. 5Hinge the two panels together at the top so they form an A when opened.
  6. 6Set the trellis over two planting rows, push the legs slightly into the ground, and anchor the feet with staples, stakes, or a 4 ft spreader bar.
  7. 7Plant vining cucumbers at the base of each side, 6 inches from the mesh. Bush cucumbers will not climb.
  8. 8Guide the first vines onto the mesh; after that they climb on their own.
  9. 9Fold flat in winter for storage if you get heavy snow.

Tools needed

  • ·Circular saw or miter saw
  • ·Cordless drill / driver
  • ·Staple gun or fencing staples
  • ·Tape measure
  • ·Work gloves

Common mistakes to avoid

  • ·Using thin wood that bows under fruit weight
  • ·Mesh holes too large — young vines fall through
  • ·Not anchoring the legs — the frame tips in wind
  • ·Planting too far from the trellis for vines to reach
  • ·Forgetting the bottom rails — the mesh has nothing to grab near the ground

Maintenance tips

Check the hinge bolt each season. Store flat in winter if you get heavy snow.
