Cattle Panel Arch Trellis

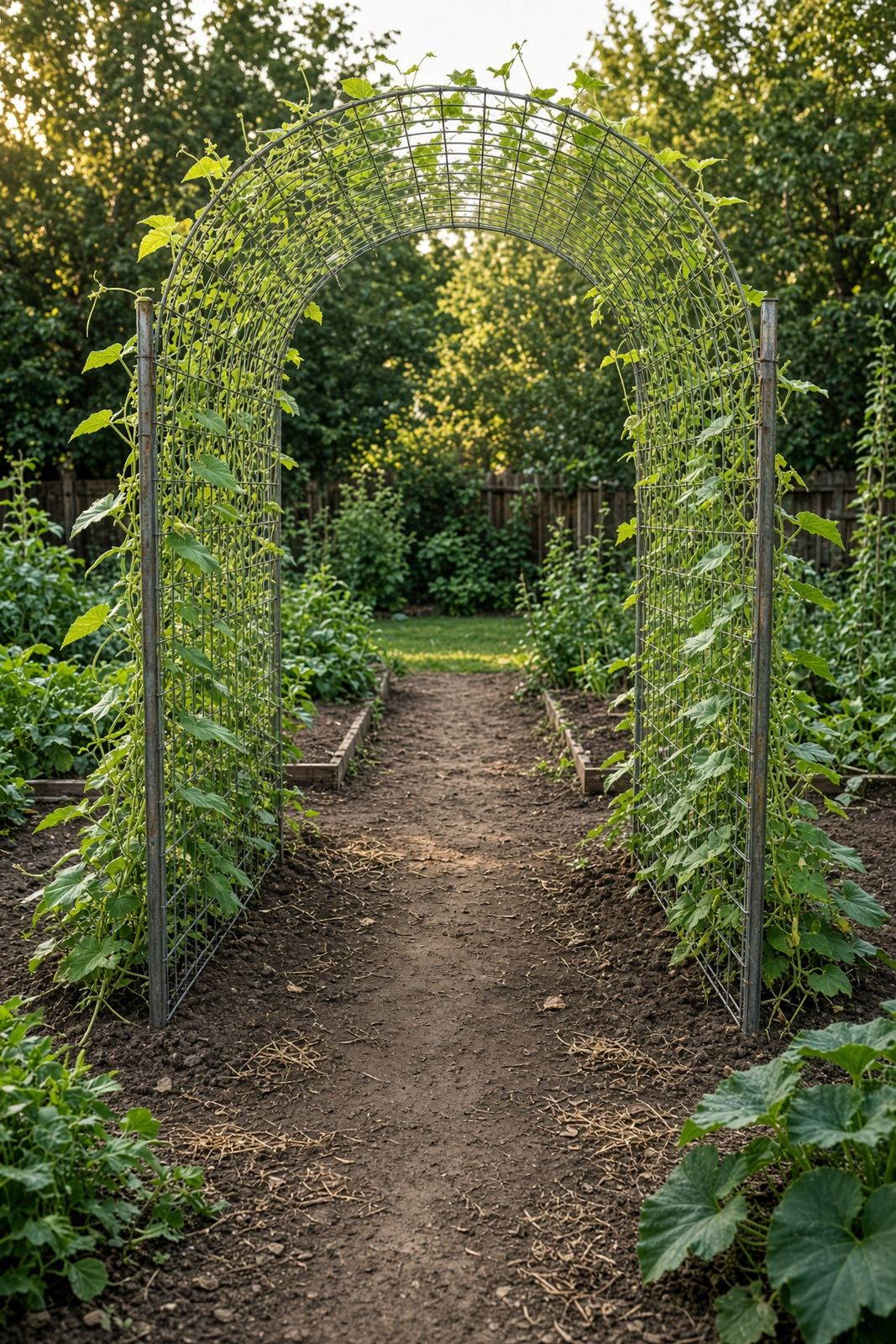

A sturdy, long-lasting arched tunnel made from a single 16 ft cattle panel. Perfect for climbing crops and it creates a shady walkway underneath.
Estimated time
1 – 1.5 hours
Lifespan
15–20 years
Soil needed
None — vertical structure
Weight empty
35–45 lbs per panel
Weight full
Adds 100–200 lbs when loaded with mature vines
Best for
Pole beans, peas, cucumbers, squash, melons, indeterminate tomatoes
Placement
Orient the arch east-west so both sides get sun. Sink the panel ends at least 12 inches into the ground for stability.
Parts to Buy
| Part | Quantity | What You Use Them For |
|---|---|---|
| 16 ft × ~50 in livestock / cattle panel (~4-gauge) | 1 | The arch itself |
| 6 ft T-posts | 4 | Two on each side to clip the buried panel ends to |
| Heavy-duty zip ties or fence staples | 8–12 | Secure panel ends to posts |
- ·Optional: garden fabric or cardboard for the path underneath
- ·Optional: twine for extra vine training
- ·Optional: extra T-post or stake for mid-arch support under heavy fruit
Steps
- 1Measure your walkway width. A 16 ft panel forms an arch about 6.5 ft high over a 4–5 ft wide path.
- 2Drive two T-posts into the ground on each side, about 4 ft apart, leaving 12–18 inches above ground. The posts are just for clipping the buried panel ends — they do not need to reach the peak.
- 3Choose a true livestock / cattle panel (~4-gauge), not thin utility wire or tomato cage mesh.
- 4Stand the cattle panel on edge and bend it into an arch. The spring steel will want to spring back — use two people, gloves, and eye protection.
- 5Slide each end of the panel 12–18 inches into the ground between the two posts on that side.

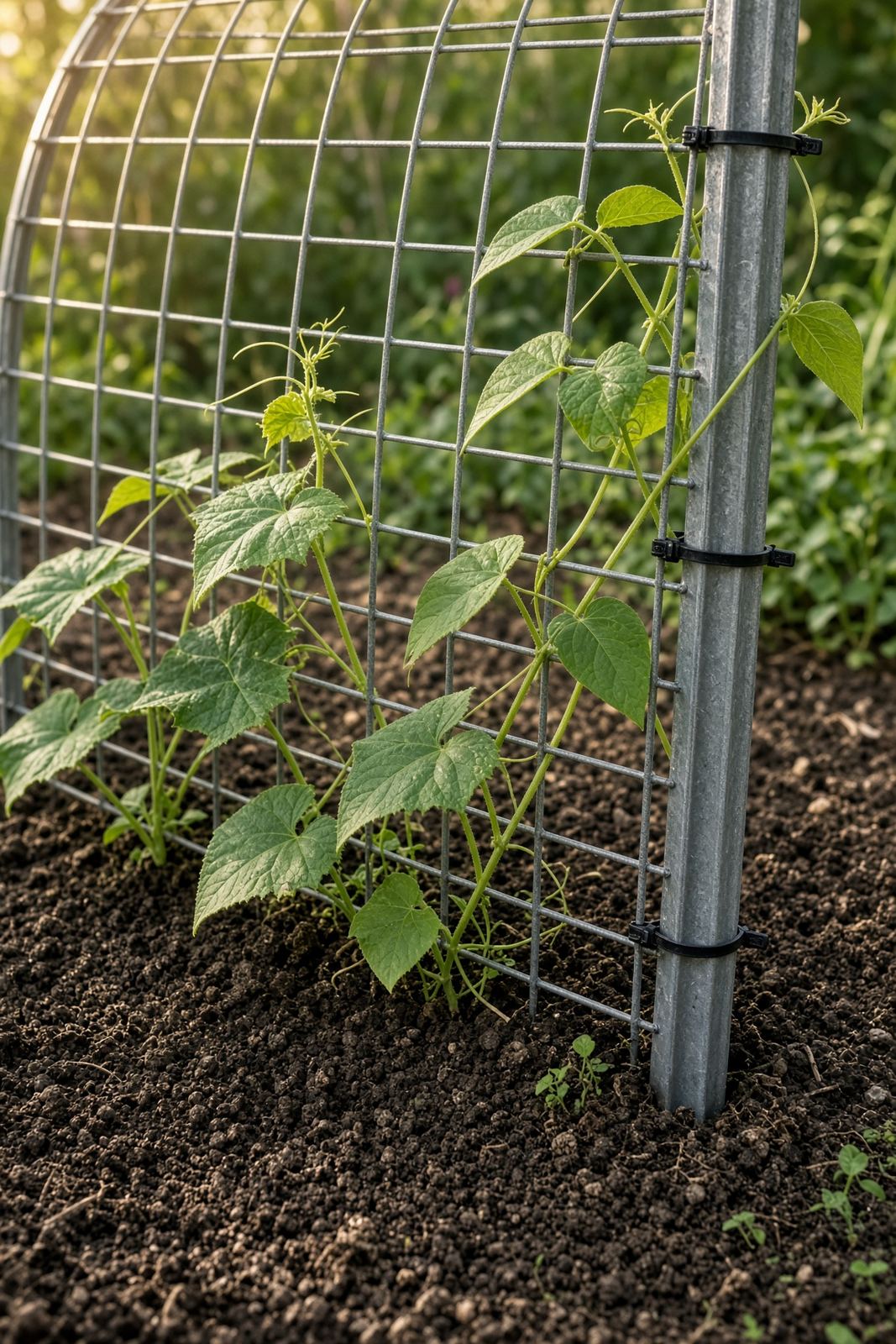

- 6Zip-tie or staple the panel to the posts at top and bottom of each end.
- 7Add an extra zip-tie or a center stake mid-arch if you are growing melons, squash, or other heavy fruit that can add 100–200 lb.
- 8Plant climbing crops on both sides at the base of the arch. Keep the space underneath for a path or shade-tolerant spring lettuce — not full-sun crops.
- 9Train the first few vines onto the panel horizontally; after that they climb themselves.
- 10If the ground is sandy or windy, add extra posts or bury the panel ends deeper.
Tools needed
- ·T-post driver or sledgehammer
- ·Pliers or fence staple hammer
- ·Tape measure
- ·Work gloves
- ·Eye protection
- ·Optional: post-hole digger if soil is rocky
Common mistakes to avoid
- ·Buying the wrong panel — use a 16 ft × ~50 in livestock / cattle panel (~4-gauge), not flimsy utility or tomato-cage wire
- ·Working alone — the panel springs back hard; use two people, gloves, and eye protection
- ·Expecting the T-posts to reach the peak — 6 ft posts with 12–18 in above ground are only for clipping the buried panel ends
- ·Not burying the panel ends deep enough — a heavy crop can tip it
- ·Using flimsy T-posts that bend under load
- ·Letting melons, squash, or heavy vines load up without extra zip-ties mid-arch or a center stake — they can add 100–200 lb
- ·Planting full-sun crops directly underneath — the arch becomes shade; use it for a path or spring lettuce
- ·Ignoring wind or soft soil — add extra posts or bury deeper in sand
- ·Letting vines overgrow one side and unbalance the arch
Maintenance tips
Inspect T-posts each spring and pack soil around any loosened holes. Add mid-arch support if heavy fruit starts to sag. Store panels flat if you ever disassemble them.
