Espalier Fruit Tree Frame

A sturdy wire training frame for espalier fruit trees — built against a wall/fence or between two anchored posts, then shaped over several seasons of pruning.

Estimated time

2 – 3 hours for the frame; years for the tree

Lifespan

15–20 years

Soil needed

None — support structure for a planted tree

Weight empty

15–25 lbs

Weight full

200–400 lbs with mature tree, fruit, and wind load

Best for

Apples, pears, and figs trained flat against a wall or fence; citrus only in warm zones on a south-facing wall

Placement

Choose either a fence/wall or two in-ground posts — do not mix the two methods. South- or west-facing walls give the best sun. Leave 6–8 inches between the frame and the wall for airflow. Flush to siding traps mildew and pests.

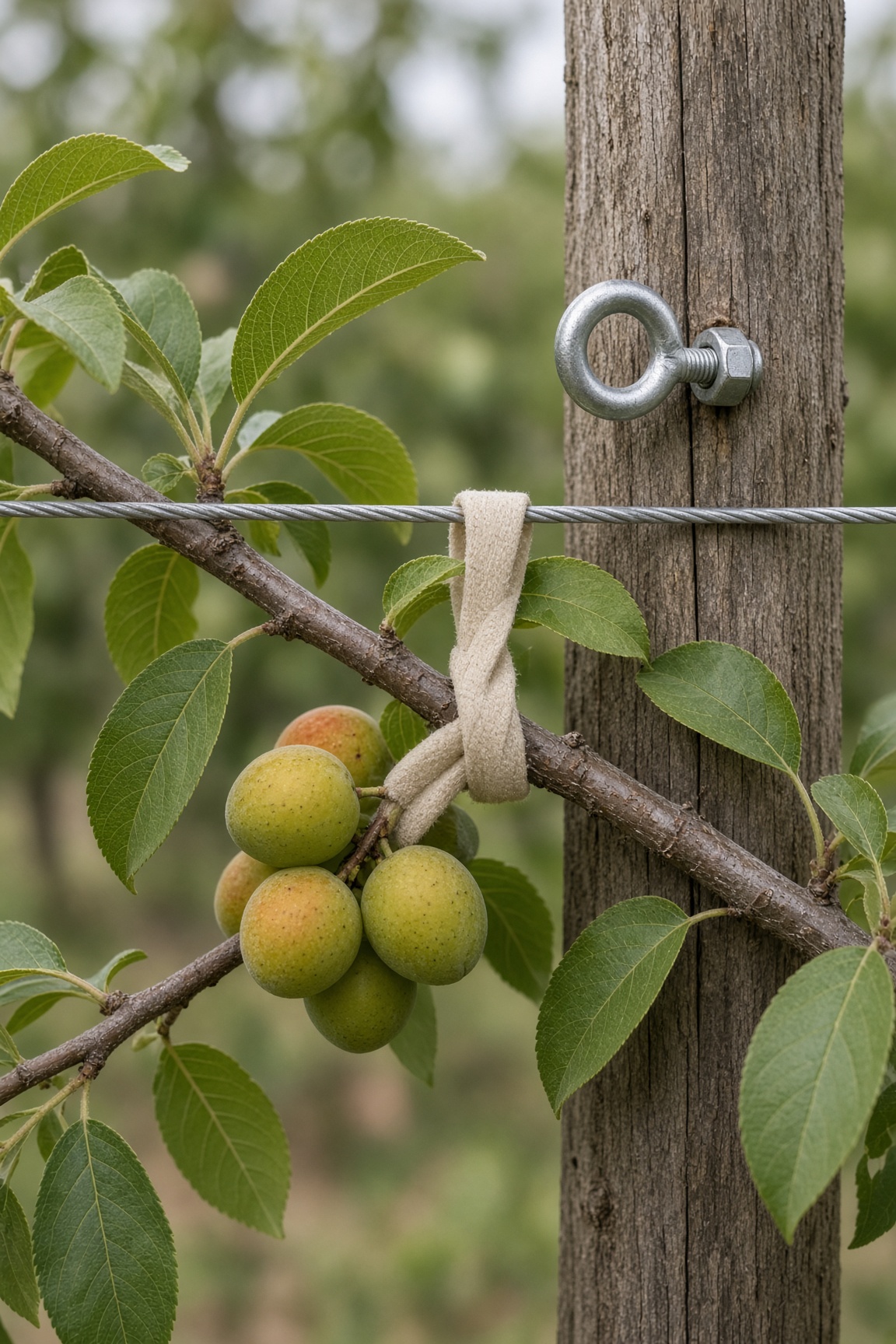

A young fruit tree branch tied to a galvanized wire on a wooden post with an eye bolt — Use 12-gauge wire and soft ties — string and clothesline sag under fruit

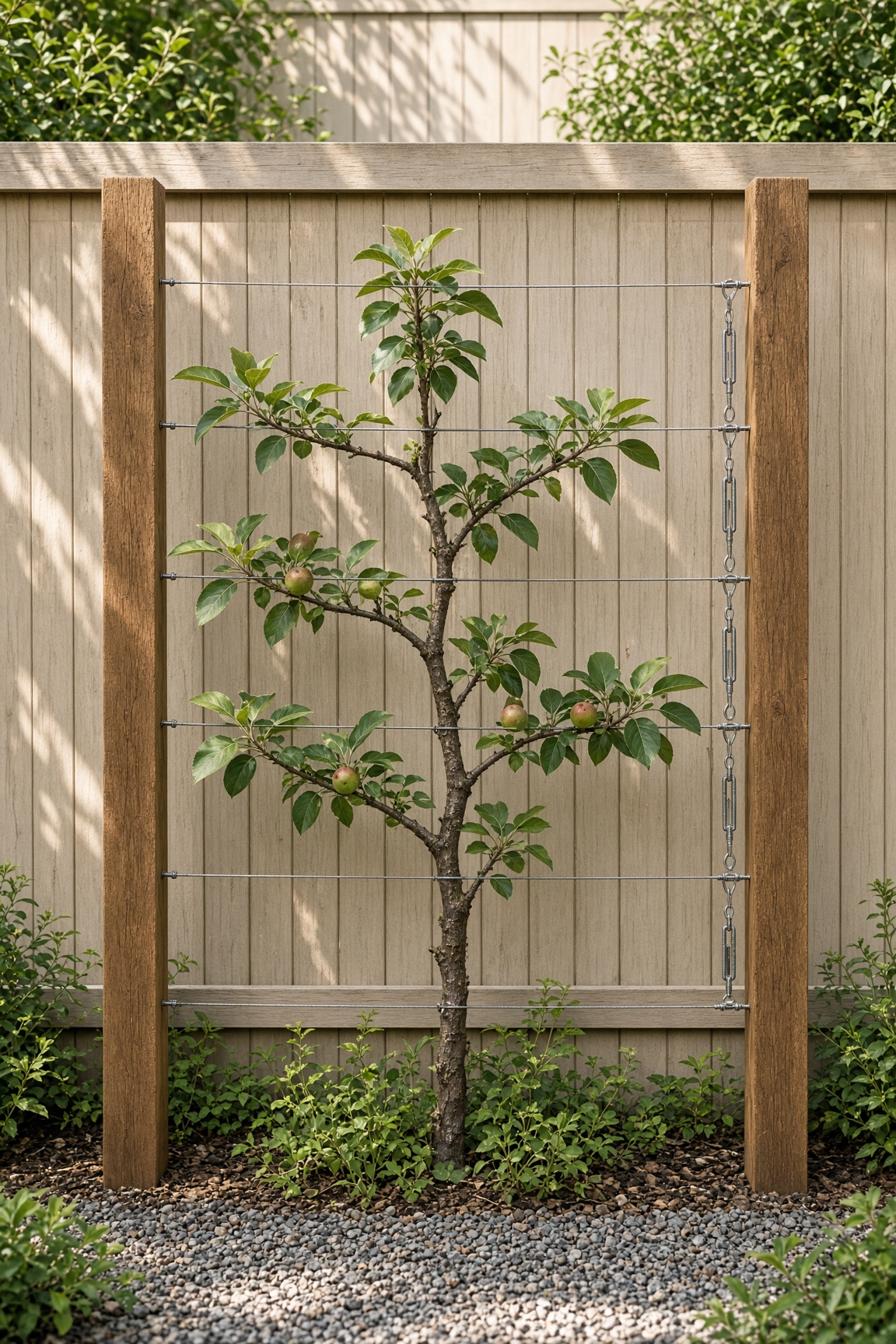

A young espaliered apple tree trained on horizontal wires between two wooden posts — Freestanding posts need real anchoring; the tree will be heavy once mature

Boards to Buy

Boards to Buy	Quantity	What You Use Them For
4×4 posts, 8 ft	2	Freestanding posts: 6 ft above ground + 2 ft buried
Galvanized wire, 12-gauge	50 ft	Horizontal training lines
Eye bolts / wire vine eyes	12	Anchor points for wire
Turnbuckles	4	Tension the wire
Exterior screws or masonry anchors	12	Wall/fence mount

·Soft tree ties or rubber-coated wire
·Gravel for post holes
·Optional: wood stain or sealant

Steps

1Choose your method: wires on a fence/wall, or two posts set in the ground. Do not combine them.
2For wall mount: install eye bolts or vine eyes in a grid 12–18 inches apart, keeping the frame 6–8 inches off the wall.
3For post mount: dig two holes 2 ft deep, set 8 ft 4×4s plumb, and backfill with gravel. This gives 6 ft of height above ground.
4Run 12-gauge galvanized wire through the anchors and tension with turnbuckles.
5Plant a young fruit tree 8–12 inches from the base of the frame.
6Select 2–3 strong branches and tie them gently to the lowest wires with soft ties.
7Prune off branches that grow forward or backward from the plane.
8Add new tiers each season as the tree grows, loosening and retieing straps before they girdle the limb.

Tools needed

·Cordless drill / driver
·Tape measure and level
·Post-hole digger (if using posts)
·Wire cutters
·Wrench for turnbuckles

Common mistakes to avoid

·Mixing wall-mounted wires with freestanding posts in the same build
·Using string or clothesline that sags under fruit weight
·Placing the frame flush against the wall — no airflow
·Training a tree with the wrong growth habit (peach is harder; citrus is zone-limited)
·Forgetting to loosen ties as the trunk thickens — they girdle the limb
·Expecting a finished orchard in one afternoon — espalier is years of pruning

Maintenance tips

Prune 2–3 times a year to maintain the flat shape. Check ties each spring and loosen or replace any that are cutting in. Tension wire with turnbuckles as the tree grows.
