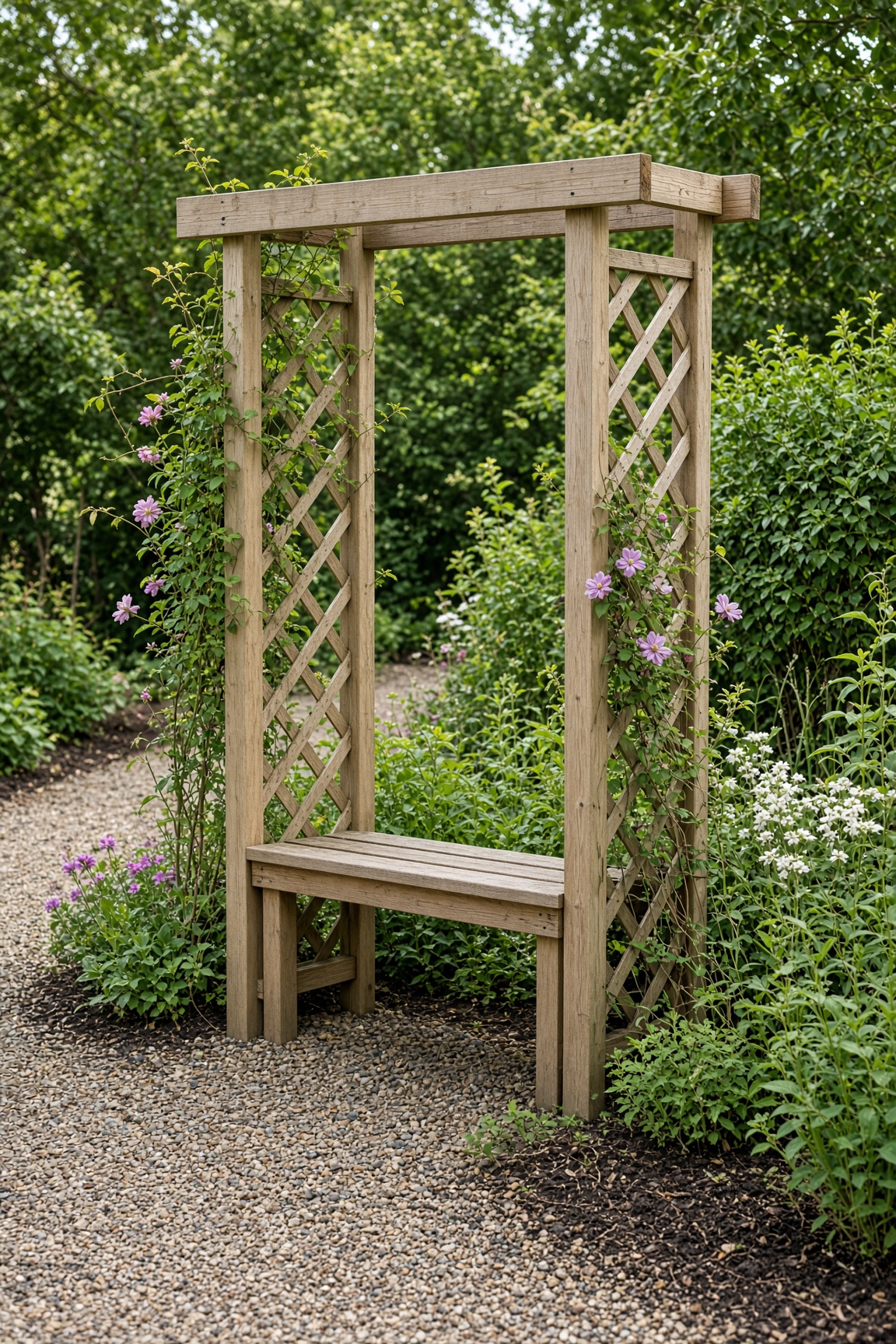

Garden Arbor with Bench
A classic garden arbor with a built-in bench, perfect for climbing vines and a shady place to rest.
Estimated time
One afternoon + 24 hours concrete cure
Lifespan
10–15 years with cedar or pressure-treated lumber
Soil needed
None — vertical structure
Weight empty
80–120 lbs
Weight full
300–400 lbs with vines and two adults
Best for
Climbing roses, clematis, beans, and creating a shaded garden seat
Placement
Anchor legs in concrete if it will support heavy vines or sit in windy areas.
Boards to Buy
| Boards to Buy | Quantity | What You Use Them For |
|---|---|---|
| 4×4 posts, 9 ft | 4 | Legs: 7 ft above ground + 2 ft bury |
| 2×6 top beam, 8 ft | 1 | Header across front and back posts |
| 2×6 bench slats, 6 ft | 4 | Seat and back (stronger than 2×4) |
| 1×2 lattice strips, 8 ft | 8 | Side panels |
| Lag bolts / exterior screws | 20 | Frame and bench joints |
- ·Concrete mix, 2 bags
- ·Gravel for drainage under post bases
- ·Exterior wood glue
Steps
- 1Dig four post holes 2 ft deep and 10 inches wide; add 4 inches of gravel to each.
- 2Cut the 9 ft 4×4 posts to 7 ft above-ground height, or buy 10 ft posts and trim after setting.
- 3Set the posts in the holes, brace them plumb, and pour concrete around each post up to ground level.
- 4Let concrete cure at least 24 hours before bolting on the beam.
- 5Bolt the 2×6 top beam across the front and back posts.
- 6Build two side lattice panels with tight spacing and attach them between the posts.

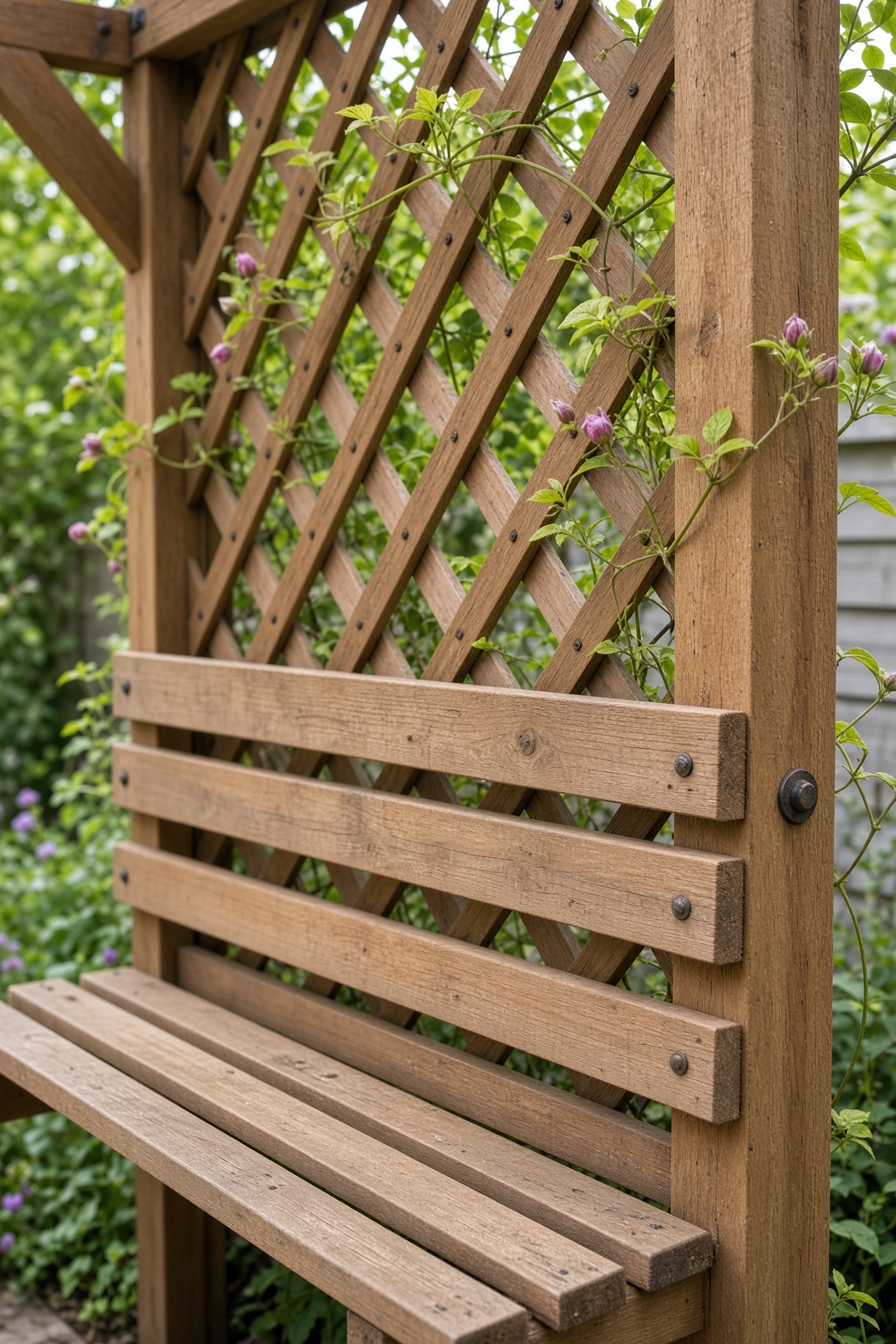

- 7Install the bench seat and back slats between the front posts; add a middle brace if the seat is over 4 ft long.
- 8Sand edges and apply exterior stain or sealant before planting any vines.
- 9Plant climbing vines at the base and guide them onto the lattice.
Tools needed
- ·Circular or miter saw
- ·Cordless drill / driver
- ·Shovel or post-hole digger
- ·Tape measure and level
- ·Socket wrench set
Common mistakes to avoid
- ·Buying 8 ft posts for a 7 ft arbor — they end up only ~5 ft above ground after a 2 ft bury
- ·Skipping concrete footings — it rocks in the wind
- ·Burying raw cut ends in dirt instead of gravel and concrete — rots the posts in 2–3 years
- ·Lattice spacing too wide — small vines cannot climb
- ·Lagging the bench into end grain only — it loosens under load
Maintenance tips
Seal or stain every 2–3 years. Tighten bolts each spring. Prune vines before they overtake the structure.
