Grape Vine Pergola

A real overhead structure — not a weekend toy — that carries 500–1,000 lbs of grapevine and turns a patio corner into a shady outdoor room.

Estimated time

4 – 6 hours (carpentry only — plus 24–48 hours of concrete cure time)

Lifespan

20–30 years

Soil needed

None — overhead structure

Weight empty

200–400 lbs

Weight full

500–1000 lbs with mature vines and fruit

Best for

Grapes, kiwi, hardy passionflower, and shade-loving seating below

Placement

Full sun on the canopy — the shade belongs under the vines. Set posts in concrete 3 feet deep (a 10 ft post then stands 7 ft tall). Keep it about 10 ft off the house if you can — wet fruit and wasps next to siding are a pain.

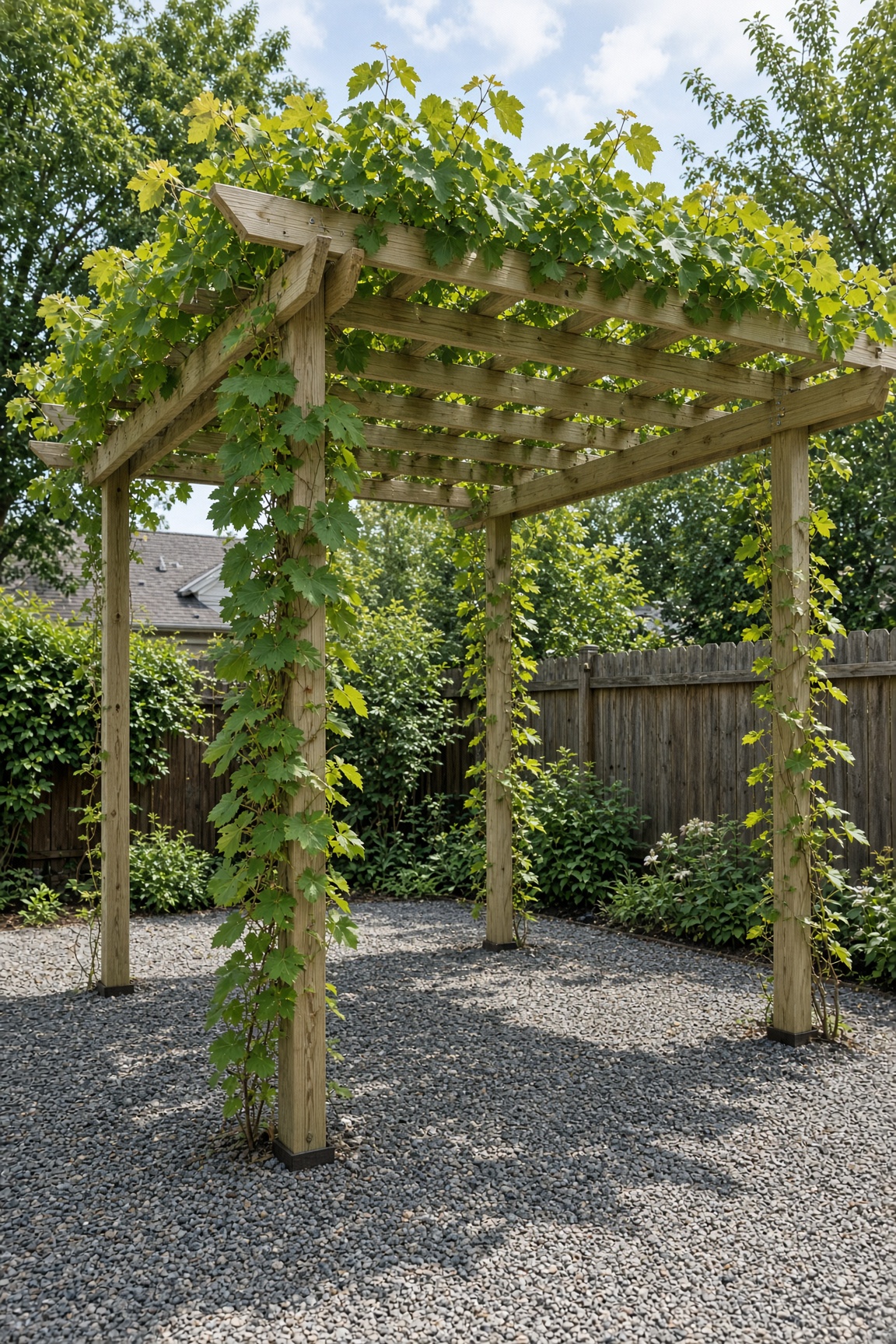

A wooden pergola over a gravel patio with grapevines trained up the posts and across the rafters — Posts in concrete 3 ft deep carry the weight once vines and fruit mature.

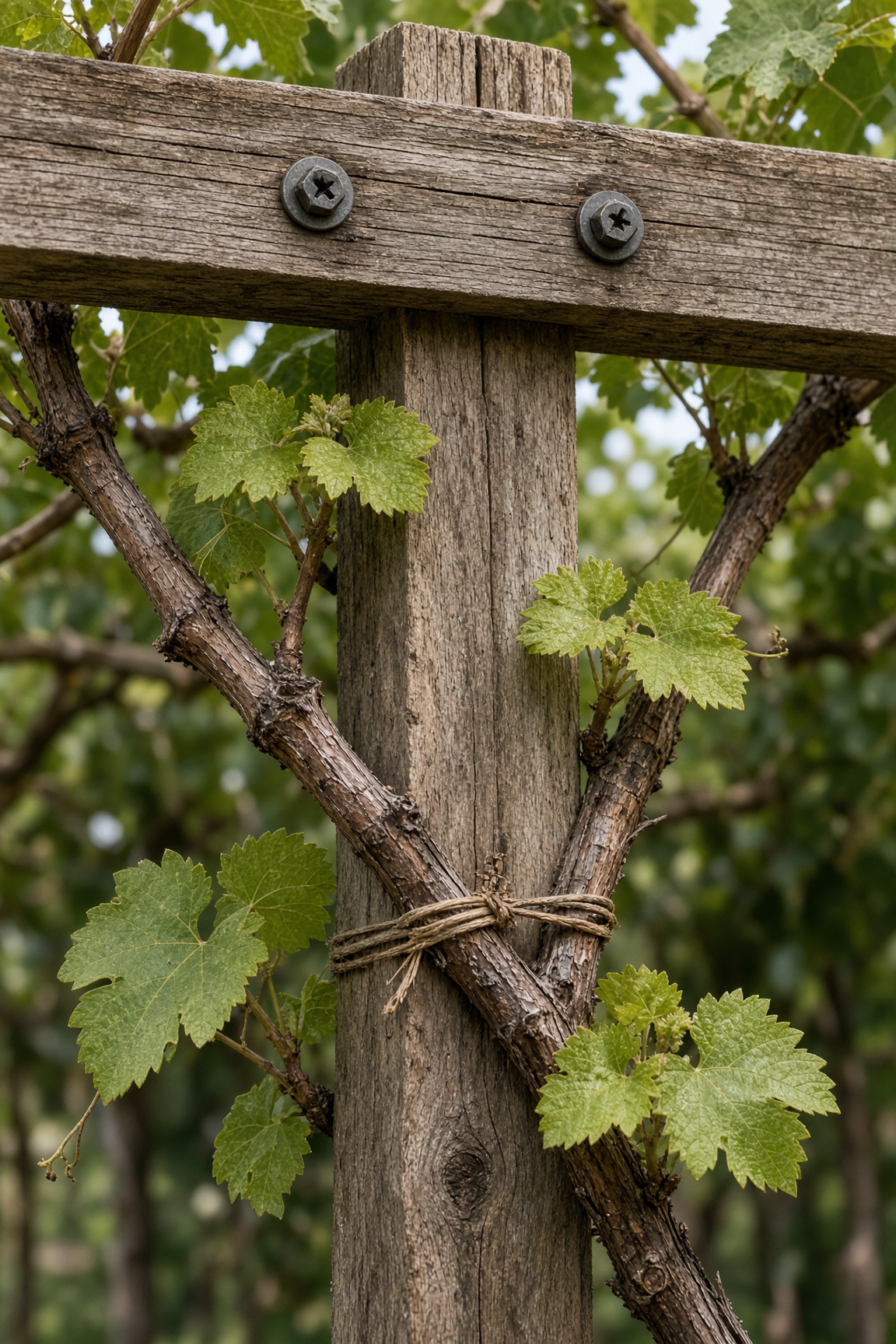

Close-up of a grapevine trunk tied to a weathered pergola post under a bolted beam — Train one or two trunks per post and winter-prune — that's what keeps it a pergola, not a jungle.

Parts to Buy

Part	Quantity	What You Use Them For
4×4 posts, 10 ft (6×6 for a serious fruit load)	4	Corner posts — bury 3 ft, 7 ft showing
2×8 beams, 12 ft (2×10 if the span runs over 10 ft)	2	Main beams
2×4 rafters, 8 ft	8	Top slats, every 12–18 in
Concrete mix	8–16 bags	Post footings — 2–4 bags per hole

·Exterior screws and lag bolts
·Post anchors or rebar
·Wood sealant

Steps

1Mark an 8×10 ft rectangle and dig four 3-foot-deep holes (a 10 ft post buried 3 ft stands 7 ft tall).
2Set posts plumb and pour concrete — 2–4 bags per hole, not four total.
3Let the concrete cure 24–48 hours before you climb it or hang beams.
4Bolt the two main beams across the tops of the posts.
5Space the eight rafters every 12–18 inches across the 10 ft run.
6Seal all wood surfaces.
7Plant vines at the base of each post and train one or two trunks per post upward.

Tools needed

·Post-hole digger or auger
·Circular saw
·Cordless drill / driver
·Level and tape measure

Common mistakes to avoid

·Posts too shallow or skimpy concrete — the pergola leans under vine weight
·Only 4 bags of concrete total — plan 2–4 bags per hole, not per project
·4×4 posts when you want real fruit — 500–1,000 lbs of wet vine calls for 6×6
·Spanning over 10 ft with 2×8 beams — they sag under wet fruit; add a mid post or step up to 2×10s
·Hanging beams before the concrete cures — wait 24–48 hours
·Skipping the winter prune — untrained vines turn the pergola into a jungle

Maintenance tips

Train one or two trunks per post and prune hard each winter. Inspect posts and hardware yearly. Re-seal wood every 3–5 years.
